Specification Table

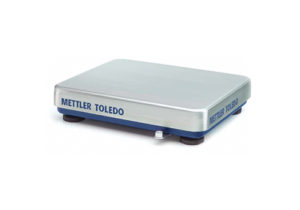

Model PBA-655 Series
Capacity (kg) 6 – 600
Readability (Divison)  Up to 60,000d (uncertified)

OIML Class III, 6000e (600 kg – 2 x 3000e MR)

Platform Size (mm) 240 x 300  300 x 400  400 x 500 500 x 650 600 x 800
Cable Length (m) 1 – 2.5
Temperature Range  14°F to 104°F (-10°C to 40°C)
Material frame  Powder coated, carbon steel
Material load plate Brushed stainless steel (AISI304)
Certification Resolution OIML Class III, 6000e (600 kg – 2 x 3 000e MR)
IP Protection IP65
