Specification Table

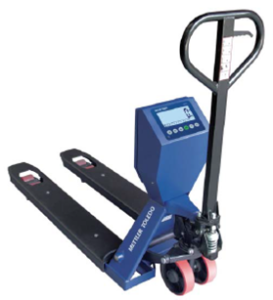

Model BTA-231
Capacity 2000kg
Readability (Divison) 1kg
Display Resolution 2kg
Weighing Units kg
Display 7 digit bright LCD 40mm high
Power 6VDC, 10Ah / 95 hours operating time /8~12 hours charging time
Load Cell Capacity 1 ton x 4, 2mV/V
Precision 0.1% maximum deviation from measuring range
Lifting Height 115mm
Fork Height Lowered: 75 mm / Raised: 190 mm
Fork Length 1220mm
Single Fork Width 180mm
Operating Temperature -10ºC to +40ºC / <85% humidity
Material Mild Steel
