Specification Table

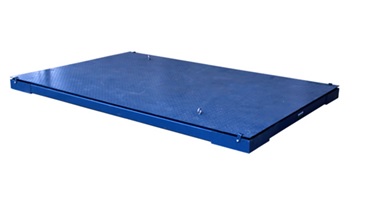

Model (Mild Steel) PDQ0808-1.5T PDQ1010-1.5T PDQ1010-3T PDQ1212-1.5T PDQ1212-3T PDQ1515-3T PDQ1515-6T PDQ2020-6T PDQ2020-10T

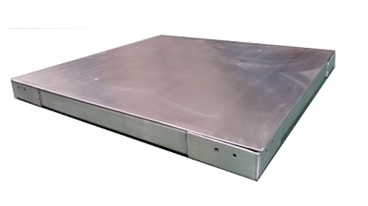

Model (Stainless Steel) PD0808-1.5T PD1010-1.5T PD1010-3T PD1212-1.5T PD1212-3T PD1515-3T PD1515-6T PD2020-6T PDQ2020-10T
Capacity (kg) 1500 1500 3000 1500 3000 3000 6000 6000 10000
Accuracy III
Increment (kg) 0.5 0.5 1 0.5 1 1 2 2 2
Platform Size (mm) 800 x 800 1000 x 1000 1000 x 1000 1200 x 1200 1200 x 1200 1500 x 1500 1500 x 1500 2000 x 2000 2000 x 2000
Junction Box Stainless Steel Enclosure, IP68 certified
Loadcell Zemic H8C-W2 (PDQ), Zemic B8D-W2 (PD) , IP67 certified
